GE-XM02 Home > Product > Speaker Microphone > GE-XM02
line

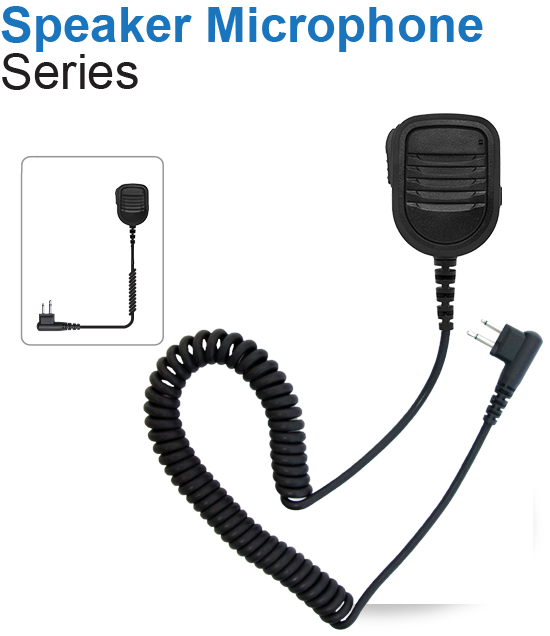

Speaker microphone PTT and 3.5mm earphone jack


Additional Parts
GEP-CLIP-M07

Electrical Specifications for Speaker Section

Item Value Conditions
1-1 Speaker Dimensions Φ40 x 6.5mm
1-2 Impedance 8Ω ± 15% 1KHZ/ 1.0V
1-3 Rated Input Power 2.0W
1-4 Max. Input Power 2.5W
1-5 output S.P.L. 86dB ± 3dB
1-6 Frequency Response 0HZ ~ 20KHZ Average SPL-10dB
1-7 Distortion 5% Max 1.2KHz/ 1.0W

Electrical Specifications for Microphone Section

Item Value
2-1 Type and Dimension Condenser Type, Dimension = Φ6.0 x 5.0mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -44dB ± 3dB
2-4 Frequency Range 50Hz~10KHz
2-5 Directivity Omni-directional
2-6 Operation Voltage Standard Voltage 3V
Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB




[ Terms and Conditions of purchase ]           [ Back ]
