GE-XM05 Home > Product > Speaker Microphone > GE-XM05
line

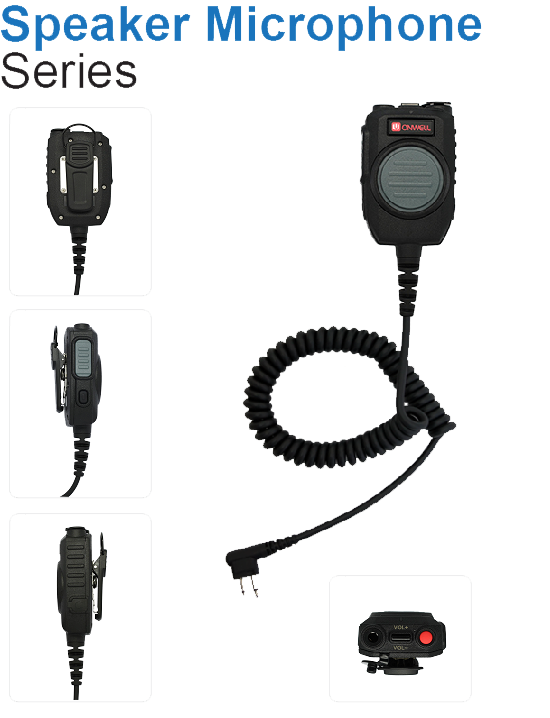

Heavy duty robust speaker microphone with large front PTT/ emergency button/ 3.5 jack/ optional LED and 5 pole nexus plug


Additional Parts


Electrical Specifications for Speaker Section
Item Value Conditions
1-1 Speaker Dimensions Φ45 x 12.3mm
1-2 Impedance 8Ω ± 15%/ 16Ω ± 15% 1KHz/1.0V
1-3 Rated Input Power 1.0W
1-4 Max. Input Power 1.5W
1-5 Sensitivity 90dB ± 3dB
1-6 Frequency Response 0HZ ~ 5.2KHZ Average SPL-10dB
1-7 Distortion 5% Max 1.0KHz/1.0W

Electrical Specifications for Microphone Section
Item Value
2-1 Type and Dimension Condenser Type, Dimension =Φ6.0 x 5.0mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -44dB ± 2dB
2-4 Frequency Range 50Hz~16KHz
2-5 Directivity Omni-directional
2-6 Operation Voltage Standard Voltage 3V Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB



[ Terms and Conditions of purchase ]           [ Back ]
