GES-MA8 Home > Product > Mobile Microphone > GES-MA8
line

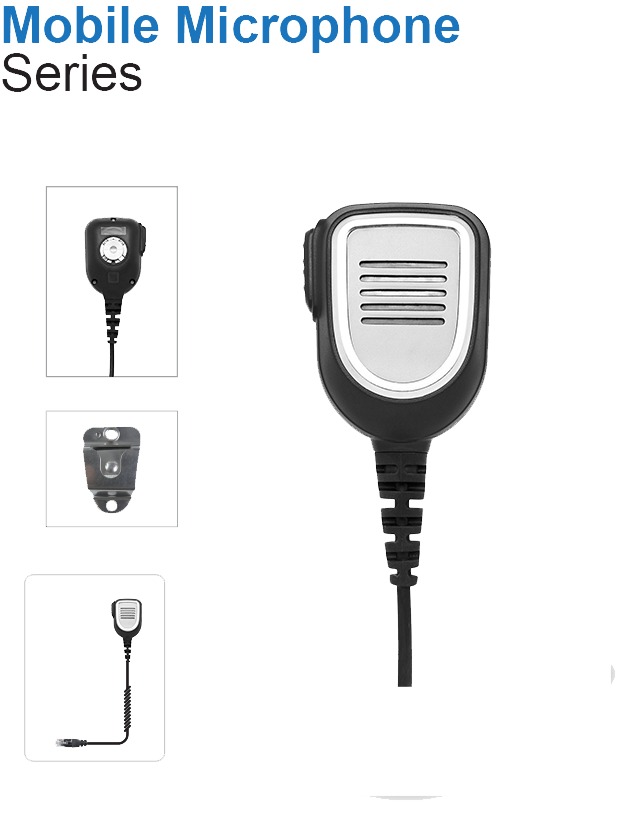

Mobile fist microphone with metal dock holder (optional front plate color)


Additional Parts
GEP-CLIP-M08
GEP-CLIP-PT

Electrical Specifications for Microphone Section
Item Value
2-1 Type and Dimension Condenser Type, Dimension = Φ6 x 2.7mm
2-2 Output Impedance Less than 2.2KΩ
2-3 Sensitivity -40 dB ± 2dB
2-4 Frequency Range 50HZ ~ 16KHZ
2-5 Directivity Omni-directional
2-6 Operation Voltage Standard Voltage 3V Max. Operation Voltage 10V
2-7 S/N Ratio 60dB, F=1KHz 1Pa  A weighted



[ Terms and Conditions of purchase ]           [ Back ]
