GES-H13 Home > Product > Headset > GES-H13
line

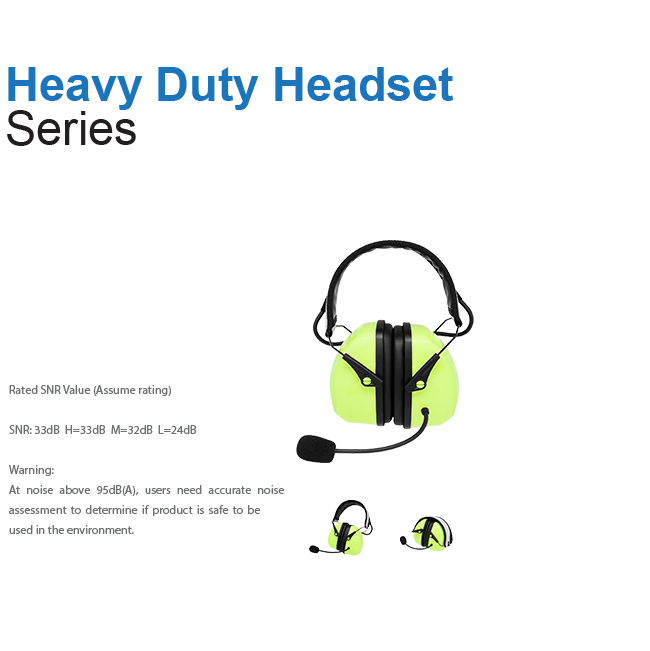

Earmuff type headset with large palm PTT and detachable cable


Additional Parts
GEP-MSP-B
GEP-EPAD-H11
GEP-FPAD-H11

Electrical Specifications for Speaker Section

Item Value Conditions
1-1 Speaker Dimensions Φ36 x 6.4mm
1-2 Impedance 16Ω ± 15% At 1.0KHZ/ 1.0V
1-3 Rated Input Power 1.0W
1-4 Max. Input Power 1.2W
1-5 Sensitivity 99dB ± 3dB
1-6 Frequency Response F0 ~20KHZ Average SPL-10dB
1-7 Distortion < 5% At 2.0KHZ, 40Vrms

Electrical Specifications for Microphone Section

Item Value
2-1 Type and Dimension Condenser Type, Dimension = Φ9.7 x 5.0mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -44dB ± 4dB
2-4 Frequency Range 50HZ ~ 10KHz
2-5 Directivity Uni-directional
2-6 Operation Voltage Standard Voltage 2V Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB



Condenser Type, Dimension = Φ9.7 x 5.0mm
