GES-PD series Home > Product > 1 Wire/ 2 Wires - PLUS > GES-PD series
line

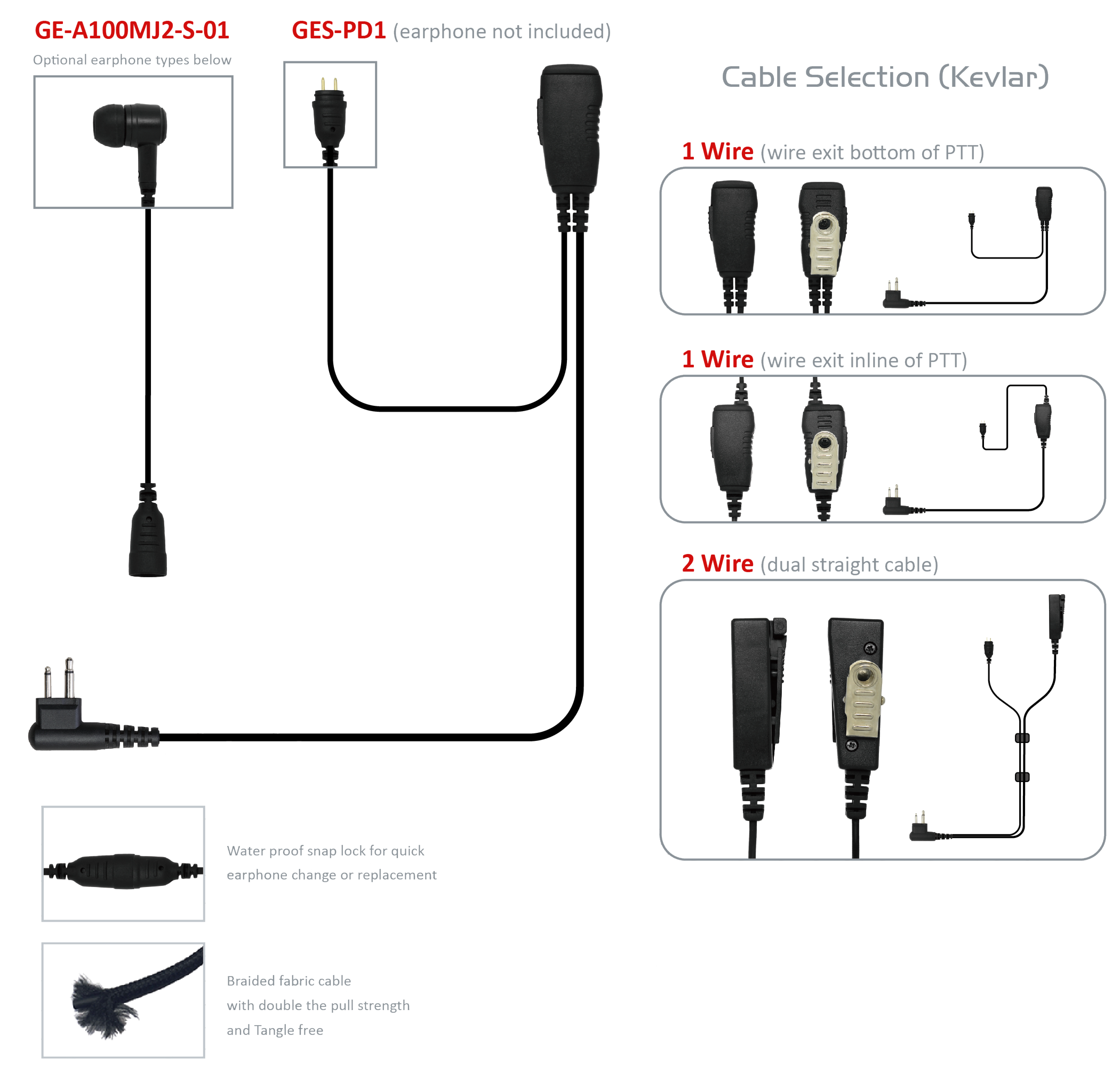

Snap lock plug for earphone with PTT/ MIC and braided fabric cable



GES-PD series

Specification



Electrical Specifications for Microphone Section
Item Value
2-1 Type and Dimension Condenser ESD Type, Dimension =Φ6.0 x 5.0mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -40dB ± 2dB
2-4 Frequency Range 50Hz~10KHz
2-5 Directivity Omni-directional
2-6 Operation Voltage Standard Voltage 2V
Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB







[ Terms and Conditions of purchase ]           [ Back ]
