GES-H01 Home > Product > Headset > GES-H01
line

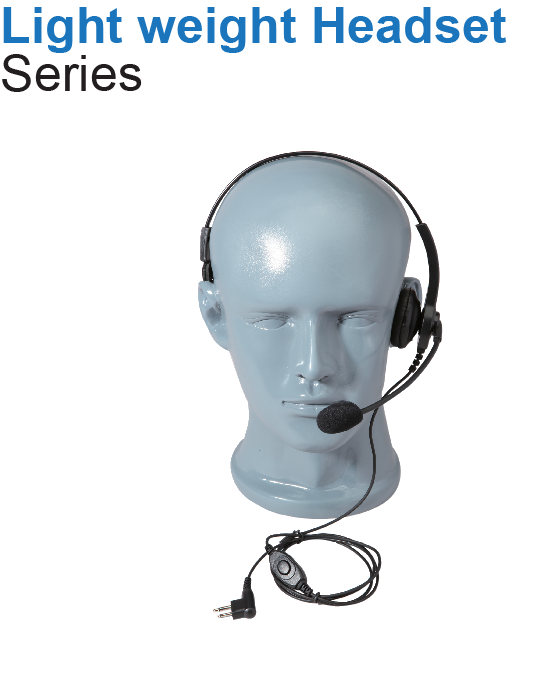

Single adjustable light weight headset with boom microphone and PTT


Additional Parts
GEP-MSP-B
GEP-CLIP-LP-25
GEP-CLIP-LP-A
GEP-ESP-H01
Optional
Wireless PTT

Electrical Specifications for Speaker Section

Item Value Conditions
1-1 Speaker Dimensions Φ29.8 × 3.7 mm
1-2 Impedance 100Ω ± 15% At 1.0KHZ/ 1.0V
1-3 Rated Input Power 1.0W
1-4 Max. Input Power 1.5W
1-5 Sensitivity 99dB ± 3dB
1-6 Frequency Response 0HZ ~ 20KHZ Average SPL-10dB
1-7 Distortion 5 %Max At 2.0KHZ/10V

Electrical Specifications for Microphone Section

Item Value
2-1 Type and Dimension Condenser Type, Dimension = Φ9.7 x 5.0mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -44dB ± 4dB
2-4 Frequency Range 70Hz~10KHz
2-5 Directivity Uni-directional
2-6 Operation Voltage Standard Voltage 2V Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB
