GES-H03 Home > Product > Headset > GES-H03
line

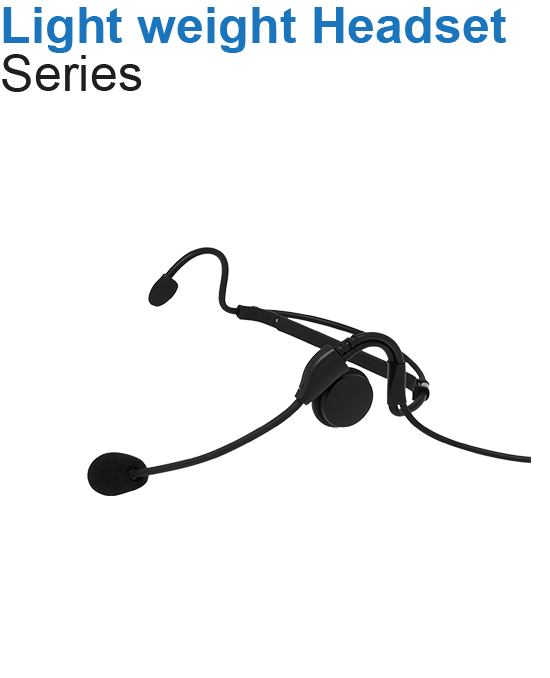

Behind the headset heavy duty headset with boom microphone and inline PTT


Additional Parts
GEP-MSP-B


Optional
Wireless PTT

Electrical Specifications for Speaker Section

Item Value Conditions
1-1 Speaker Dimensions Φ23 × 6.5 mm
1-2 Impedance 84Ω ± 15% At 1.0KHZ/ 1.0V
1-3 Rated Input Power 20mW
1-4 Max. Input Power 30mW
1-5 Sensitivity 118dB ± 3dB
1-6 Frequency Response 0HZ ~ 10KHZ Average SPL-10dB
1-7 Distortion 10 %Max

Electrical Specifications for Microphone Section

Item Value
2-1 Type and Dimension Condenser Type, Dimension = Φ 9.7 x 6.5mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -38dB ± 2dB
2-4 Frequency Range 50Hz ~ 16KHz
2-5 Directivity Omni-directional
2-6 Operation Voltage Standard Voltage 3V Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB
