GES-H05 Home > Product > Headset > GES-H05
line

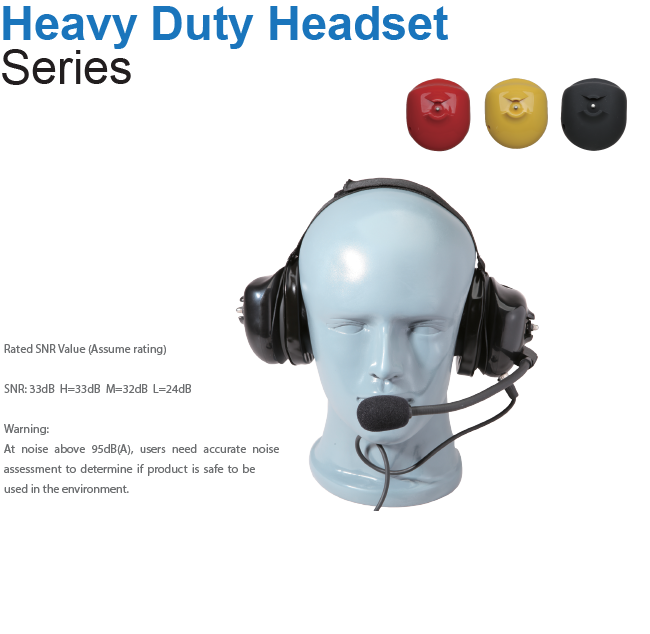

Earmuff type with behind the head headband headset and boom microphone (inline large round PTT buttom on cable)


Additional Parts
GEP-MSPL-B
GEP-CAP-PTT04
GEP-CLIP-PT

Electrical Specifications for Speaker Section

Item Value Conditions
1-1 Speaker Dimensions Φ44.6 x 8.3mm
1-2 Impedance 8Ω ± 15% At 1.0Hz/ 1.0V
1-3 Rated Input Power 2.0W
1-4 Max. Input Power 3.0W
1-5 Sensitivity 86dB ± 3dB
1-6 Frequency Response 300HZ ~ 18KHZ Average SPL-10dB
1-7 Distortion 5 %Max At 1000Hz 1.0W

Electrical Specifications for Microphone Section

Item Value
2-1 Type and Dimension Condenser Type, Dimension = Φ9.7 x 5.0mm
2-2 Output Impedance 2.2KΩ ± 10%
2-3 Sensitivity -44dB ± 4dB
2-4 Frequency Range 50HZ ~ 10KHz
2-5 Directivity Uni-directional
2-6 Operation Voltage Standard Voltage 2V Max. Operation Voltage 10V
2-7 S/N Ratio More Than 58dB




[ Terms and Conditions of purchase ]           [ Back ]
